Products & Services
DVR Earth
DVR Earth global fleet application software-Mobile DVR with Google Earth!
Video
VSS Highway Tracking
View large video
View large video
Copyright © 2014 Vehicle Surveillance Systems
DVR Earth
Others
| · | Support VSS Series DVR codec .mpf video file |
| · | Global fleet application software Mobile DVR with Google Earth! |
| · | Low-cost small Fleet Management System Solution |
| · | GPS tracking, route and live vehicle camera's video images |
| · | DVR Earth to work under Google Earth |
Mobile DVR VSS Series
Remote
Monitor
Monitor
DVR Earth Mobile DVR
with Google Earth
with Google Earth
Computer
or Laptop
or Laptop
Google Earth
Global GIS Centre
Global GIS Centre
GPS Device

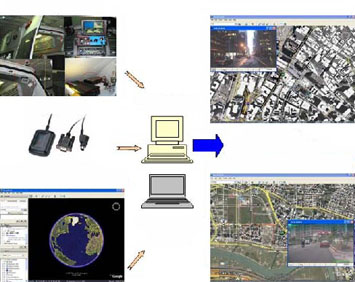

DVR Earth System Architecture
DVR Earth System Architecture

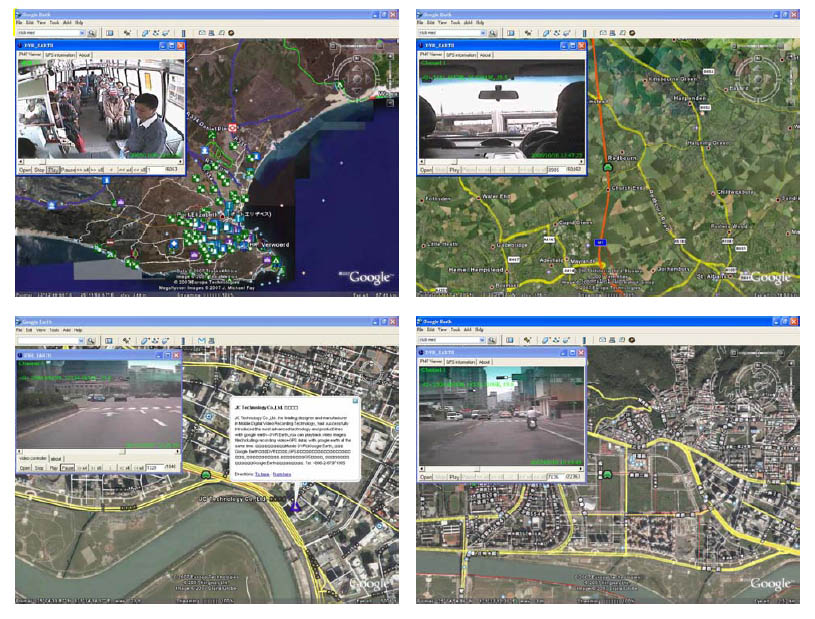

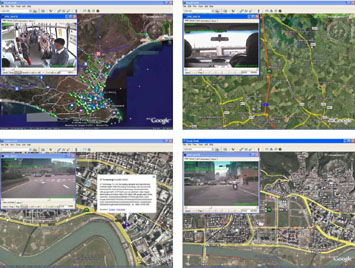

DVR Earth in Taiwan / United Kingdom / South Africa
Click on image to enlarge

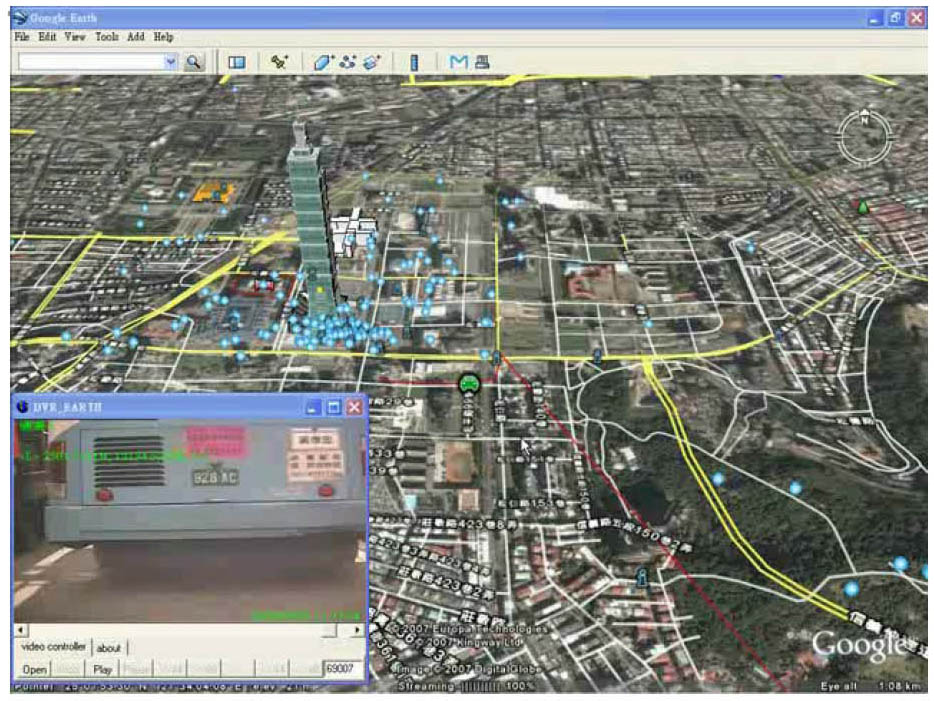

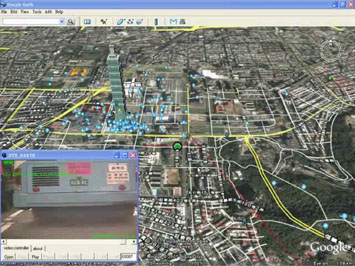

DVR Earth example
Click on image to enlarge
DVR Earth Pro
| · | Support multi vehicles (Up to 150 Nodes) |
| · | To work with RMS |
| · | Live real time monitoring |
| · | Live playback |
| · | Speedy switch different nodes |
| · | Storage Backup |
| · | Off-Line playback |

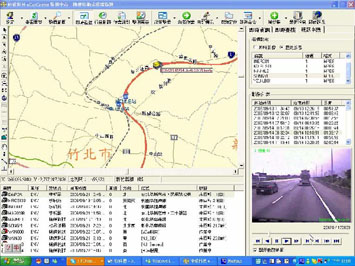

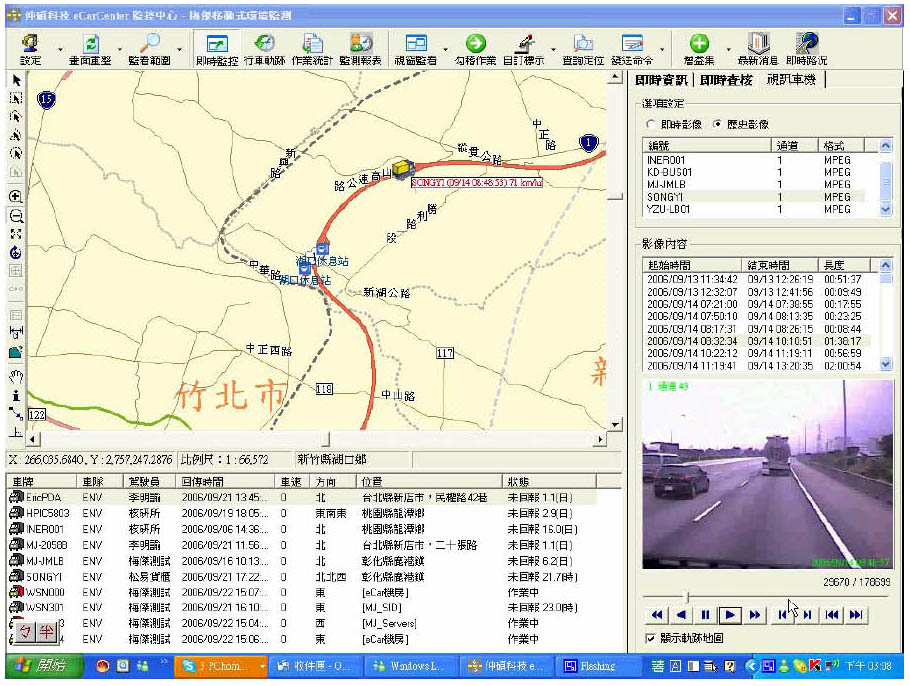

GIS-Vcar
| · | GIS Fleet Image Central Control System |
| · | Easy to Use Operation Interface |
| · | Complete System Architecture |
| · | Easy to Use Design |
| · | Support Server and Client Version |
| · | To work with RMS |
| · | Support Mapinfo GIS file format |
DVR Earth example
Click on image to enlarge

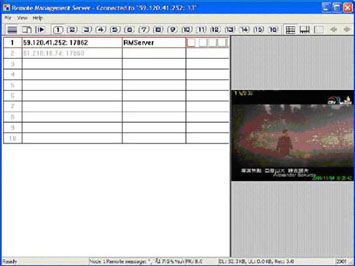

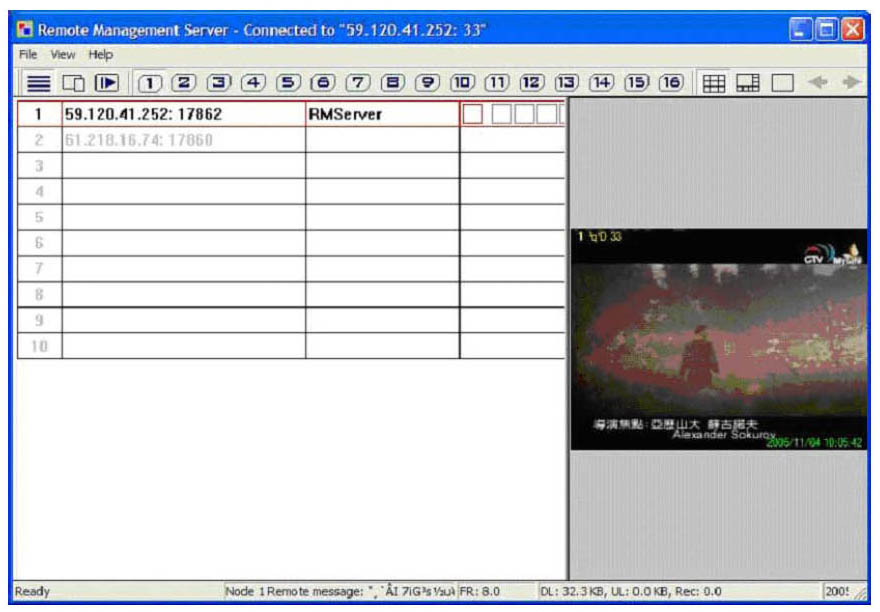

Remote Management Server
RMS example
Click on image to enlarge
| · | A very intelligent program and suitable for most general purpose used application |
| · | Provide the DVR system information like; the system status, camera status, eventstatus and alarm status |
| · | Provide the real time video that is received from Mobile DVR via LAN or internet |
| · | Control and manage the DVR by changing its setting from remote PC |
Click on image to enlarge
RMS node license
| · | RMS for 10 nodes license cost free |
| · | RMS for 50 nodes license version |
| · | RMS for 100 nodes license version |
| · | RMS for 150 nodes license version |
| · | SDK (Software Development Kit) available |

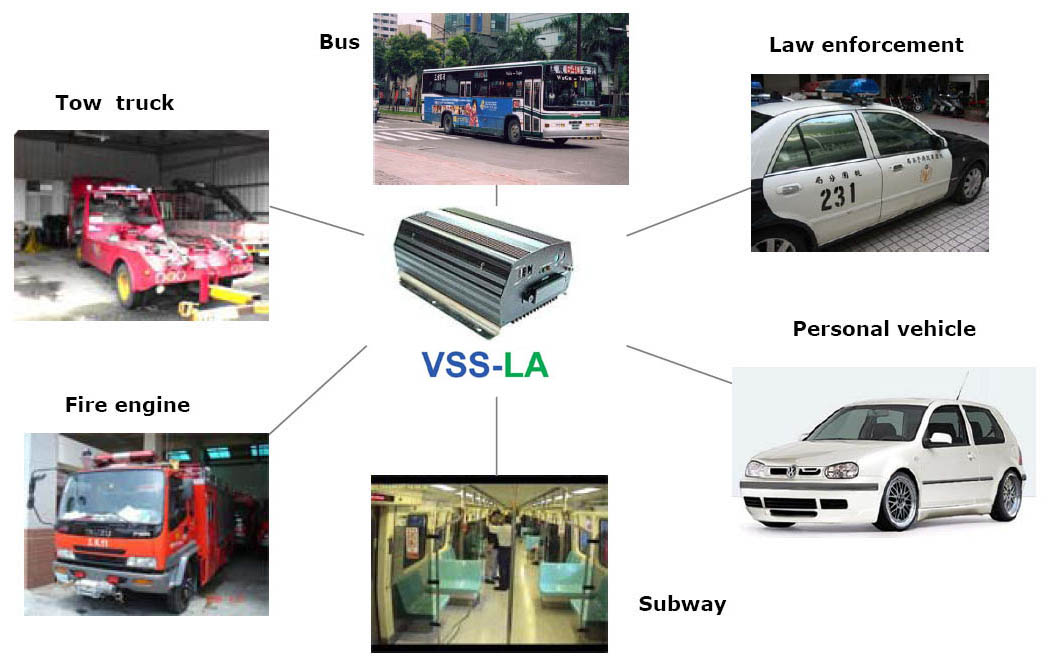

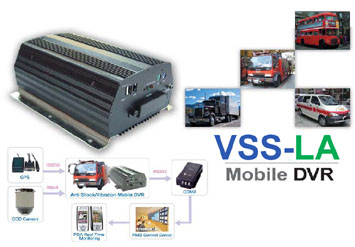

Mobile DVR VSS-LA
Click on image to enlarge
| · | DC 9V - DC 36V Power Input |
| · | Fan-less Design |
| · | Suitable for all kinds of vehicle, rugged and will withstand industrial temperature range |
| · | 4~8 channel system |
| · | 2.5 Inch HDD or Compact Flash memory backup |
| · | Equip Anti Shock / Vibration absorbent caddy, for HDD |
| · | GPS, GPRS/CDMA/HSDPA, GIS, Google Earth, G- Sensor & Wi-Fi interface , plug-and-play function |
| · | Date, time, GPS data ( coordination, speed ) and GIS (E-Map) on PC screen while playing back |
| · | AV / VGA Monitor Support |
| · | Instant video retrieval by time, date and event |
Click on image to enlarge
VSS-LA Peripherals for option
| · | Waterproof CCD: This pin-hole size CCD is specially designed for mobile condition. Not only its tiny, it features waterproof to make it specially suitable for outdoor and critical security. |
| · | GPS receiver: GPS SirFIII RS232 receiver provides data of latitude, longitude, GMT and speed of vehicle to overlay on video and stored in VSS-LA series. |
| · | GPRS/3G transmitter: When you need to send stream film back to control center in an incident, GPRS / GSM / CDMA / WCDMA / HSDPA can assist you to accomplish this task. Simply integrate with DI/O connectors on VSS-LA series and trigger the 3G transmitter to send video/data for you. |
| · | G-Sensor: G-Sensor detects G values of X, Y and Z axes simultaneously, and you can monitor driver’s habits via this device. The recorded data can be presented as evidence if an accident happens. |
| · | Vest/helmet with wireless camera: Through wireless camera, fixed on a vest or helmet, video signal can be transmitted to VSS-LA. |
| · | RMS Software: Remote Management Server, this software is the kernel of DVR management. |
| · | GIS Software: GIS-Vcar Geographic Information System, this software provides you precise location and direction of a vehicle movement. |
| · | DVR Earth Software: Support Google Earth for free DVR playback function |
| · | DVR Earth Pro Software: Support Google Earth for Multi Vehicles live video monitor/playback/backup function |

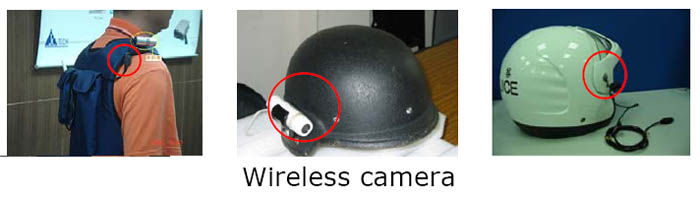

Wireless camera
Click on image to enlarge
Click on image to enlarge
VSS-LA Peripherals
| · | GPS Receiver SirFIII |
| · | 3G Router (Still need a SIM card andcommunication fee /per month by your Telecomcompany) |
| · | GPRS transmitter |
| · | LCD/Camera |
| · | 2.5 Inch HDD. |
| · | CF 1GB / 2GB |
| · | Installation and construction fee (To vehicle) |
| · | Cables fee (includes DC power cable and other dataconnect cable) |

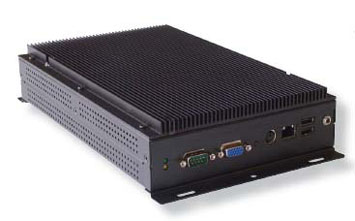

Mobile DVR VSS-LE 1000
Introduction
VSS is launching its new cost effective mobile DVR series product line called VSS-LE 1000 to offer new generation amazing functions to users with advanced technology, the main function that VSS-LE 1000 new offer is as follows: Fan less design, Support 3G/3.5G (CDMA / HSDPA) for remote surveillance, Real-Time video monitoring, Real-time GPS position with GIS, DVR Earth, support Google Earth for Global GIS management center.
Features
| · | Easy to use |
| · | Fan less Design |
| · | Suitable for all kinds of vehicle, rugged and withstand industrial temperature range |
| · | 4 channel video & 1 channel audio |
| · | 2.5 inch HDD and Compact Flash memory backup |
| · | GPS, GPRS/CDMA/HSDPA, GIS, Google Earth, Wi-Fi interface, plug-and-play function |
| · | Date, time, GPS data ( coordination, speed ) and GIS (E-Map) on PC screen while playing back |
| · | AV / VGA Monitor Support |
| · | Public Transportation |
| · | Police Car / Fire Engine / Ambulance |
| · | Cash Carrier |
| · | Patrol Wagon |
| · | Fleet Management |
| · | BUS / MRT / Train |
Applications
Solutions
| · | RMC |
| · | RMS Server |
| · | GIS VCAR Server |
| · | GIS VCAR Client |
| · | DVR Earth |
| · | DVR Earth Professional |
Accessory
| · | GPS |
| · | 3G Router |
| · | LCD Monitor |
| · | Wi-Fi |
| · | Wireless Flashlight Camera |
| · | Mobile Eyes 2002 (DEMO Kit) |
Specification
DVR System
Video Input
Audio Input
Video Standard
Audio Output
Image Resolution
Max. Frame Rate
Operating System
Compression
Video Input
Audio Input
Video Standard
Audio Output
Image Resolution
Max. Frame Rate
Operating System
Compression
Hardware and I/O Connection
CPU
VGA
Audio Compression
USB Port
Serial
Ethernet Port
Alarm Input (GPIO)
Alarm Output (GPIO)
CPU
VGA
Audio Compression
USB Port
Serial
Ethernet Port
Alarm Input (GPIO)
Alarm Output (GPIO)
Others
Storage
Wi-Fi Support
Dimension (WxDxH)
Weight
Power
Temperature
Certification
Storage
Wi-Fi Support
Dimension (WxDxH)
Weight
Power
Temperature
Certification
4 Channels
1 Channels
Composite for NTSC/PAL
1x Audio Output
320x240, 640x480, D1
60 fps (NTSC/PAL)
Embedded Linux
M-JPEG, MPEG-4
Intel Ultra Low Voltage Processor
1
ADPCM
2
2x RS-232
1x 10/100Mb Ethernet Port
4
4
2.5” HDD or CF Card (Compact Flash)
Wireless 802.11b/g
255x200x60 mm
2.2 Kg
DC 9V-DC 36V
-25~55 degrees
CE, FCC

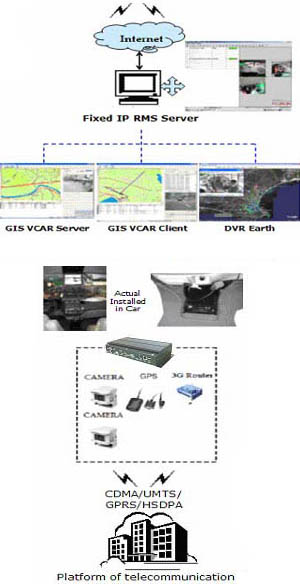

VSS-LE 1000 Mobile DVR
RMS Server Version
DVR Earth in U.K.
GIS VCAR Server

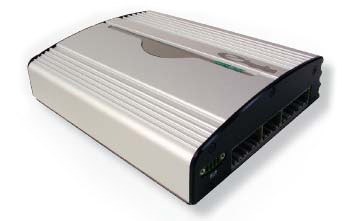

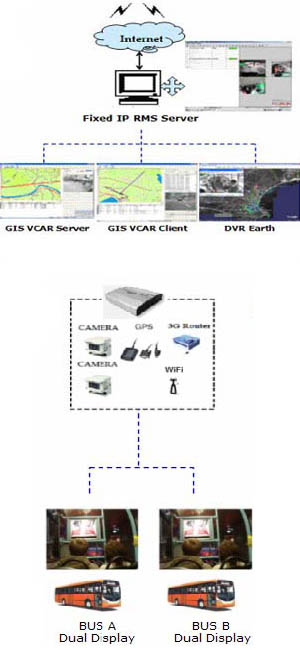

Mobile DVR VSS-LE 2000 (NEW)
Introduction
VSS is launching its new cost effective mobile DVR series product line called VSS-LE 2000 to offer new generation amazing functions to users with advanced technology, the main function that VSS- LE new offer is as follows: Dual Video Output, Fan less design, Support 3G/3.5G (CDMA/HSDPA) for remote surveillance, Real-Time video monitoring, Real-time GPS position with GIS,DVR Earth, support Google Earth for Global GIS management center.
Features
Applications
Solutions
| · | RMC |
| · | RMS Server |
| · | GIS VCAR Server |
| · | GIS VCAR Client |
| · | DVR Earth |
| · | DVR Earth Professional |
| · | Public Transportation |
| · | Police Car / Fire Engine / Ambulance |
| · | Cash Carrier |
| · | Patrol Wagon |
| · | Fleet Management |
| · | BUS / MRT / Train |
| · | Advertisement System |
| · | Easy to use |
| · | Fan less Design |
| · | Automotive Standard Connector |
| · | Anti-vibration, Anti-shock |
| · | Design to Ensure Maximum Reliability |
| · | Wide Range DC Power Input |
| · | Two PCMCIA Slots |
| · | Dual CRT and Audio Output |
| · | Removable 2.5 inch HDD tray |
| · | Build-in CF (Compact Flash) slot |
| · | 4/8 Channel Video Input |
| · | Aluminum extruded housing |
Accessory
| · | GPS |
| · | 3G Router |
| · | LCD Monitor |
| · | Wi-Fi |
| · | Wireless Flashlight Camera |
| · | Mobile Eyes 2002 (DEMO Kit) |
Specification
DVR System
Video Input
Audio Input
Video Standard
Audio Output
Image Resolution
Max. Frame Rate
Operating System
Compression
Video Input
Audio Input
Video Standard
Audio Output
Image Resolution
Max. Frame Rate
Operating System
Compression
Hardware and I/O Connection
CPU
VGA
Audio Compression
USB Port
Serial
Ethernet Port
Alarm Input (GPIO)
Alarm Output (GPIO)
CPU
VGA
Audio Compression
USB Port
Serial
Ethernet Port
Alarm Input (GPIO)
Alarm Output (GPIO)
4/8 Video Input , 1V pp/ 75 ohm
1 / 2 Input, Synchronized with Video
Composite for NTSC/PAL
2x Audio Output
320x240, 640x480, D1
30 fps (NTSC/PAL)
Embedded Linux
M-JPEG, MPEG-4
Intel Ultra Low Voltage Processor
2x VGA Port
ADPCM
2
2x RS-232
1x 10/100Mb Ethernet Port
4
4
Others
Storage
Wi-Fi Support
Dimension (WxDxH)
Weight
Power
Temperature
Certification
Storage
Wi-Fi Support
Dimension (WxDxH)
Weight
Power
Temperature
Certification
2.5” HDD or CF Card (Compact Flash)
Wireless 802.11b/g
255x200x60 mm
2.2 Kg
DC 9V-DC 36V
-25~55 degrees
CE, FCC
RMS Server Version
DVR Earth in U.K.
GIS VCAR Server
VSS-LE 1000 Mobile DVR
